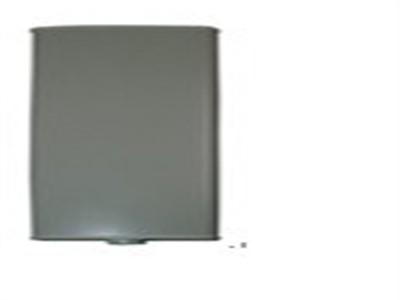

Base Panel Directional Antenna
電氣性能Electrical specifications
|
型號Model |
TQWTD-12065-08/09V |
|
頻率范圍Frequency Range |
806-960(MHz) |
|
輸入阻抗Input Impedance |
50(Ω) |
|
駐波比系數VSWR |
<1.5 |
|
增益Gain |
12(dBi) |
|
半功率波束(3dB)HPBW |
65°H-plane 30°E-plane |
|
前后比F/B |
>25(dB) |
|
功率容量Maximum Power |
500(W) |
|
極化方式Polarization |
垂直極化Vertical Polarization |
|
交調PIM |
<-107(dBm) |
|
接口Connector Type |
7/16或N-K |
|
閃電保護Lighting Protection |
直接接地Direct Ground |
|
環境溫度Ambient temperature |
-40℃— +60℃ |
|
機械特性Mechanical specifications |
|
天線罩材料Radome Material |
ABS |
|
天線罩顏色Radom Colour |
灰色Ashen |
|
抗風Wind Velocity |
200(km/h) |
|
高/寬/厚Height/Width/Depth |
660/280/80(mm) |
|
重量Weight |
7(kg) |
|
抱桿直徑Hold Pole Diameter |
Φ50-Φ110(mm) |
|
