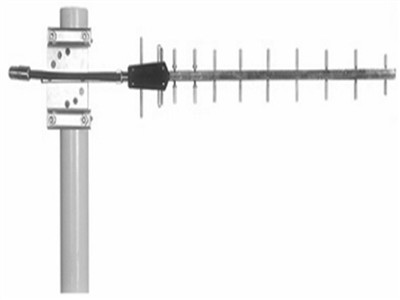

型號Model                                                                      TQWTY-12-1.8/1.9V

頻率范圍FrequencyRange                                               1710-1990(MHz)

輸入阻抗Input Impedance                                               50(Ω)

駐波比系數VSWR                                                             <1.5

增益Gain                                                                        12(dBi)

半功率波束(3dB)HPBW                                                    38°H-plane    36°E-plane

前后比F/B                                                                       >15(dB)

功率容量 Maximum Power                                              200(W)

極化方式Polarization                                                      垂直極化Vertical Polarization

接口Connector Type                                                      N-K

閃電保護Lighting Protection                                           直接接地Direct Ground

抗風Wind Velocity                                                         200(km/h)

長度Length                                                                   700(mm)

結構Structure                                                                11單元

重量Weight                                                                   0.8(Kg)

抱桿直徑Hold Pole Diameter                                          φ40-φ60(mm)
